SP Handy Grid III Series

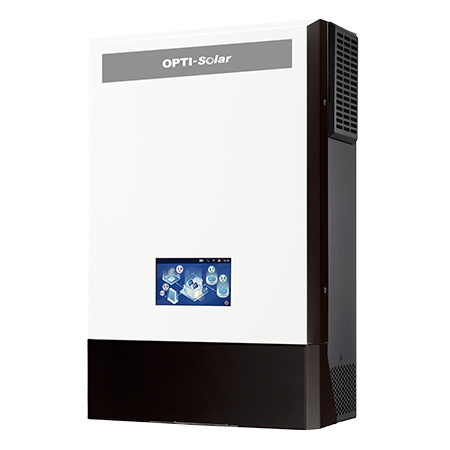

SP Handy Grid III 6K
Hybrid type with Grid-Tie function & HMI 4.3" touch screen design
- High PV input range & 6KW PV capacity

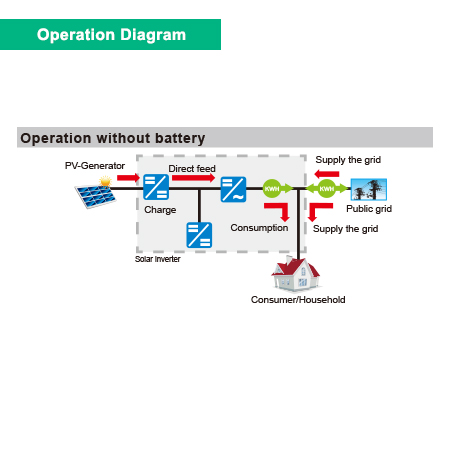

- Feasible for without-battery operation
- Pure sine wave inverter
- Smart battery charger design for optimized battery performance
- Built-in dual MPPT solar charge controllers
- Overload and short circuit protection

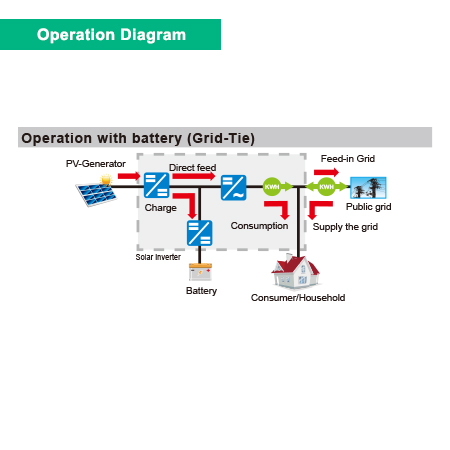

- Grid-Tie function
- 4.3" colored touch screen with user-friendly HMI operation
- BMS & Wi-Fi function
- Parallel operation for 9 units
| MODEL | SP6000 Handy Grid III |
| Rated Power | 6200VA/6200W |
| INPUT | |
| Nominal Voltage | 220/230/240 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/ 60 Hz (Auto sensing) |
| AC OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 10000VA |
| Peak Efficiency | 93% |
| Transfer Time | 10 ms (For Personal Computers) |
| 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave |
| Grid OUTPUT | |
| Nominal Voltage | 220/230/240 VAC |
| Voltage Range | 184-264.5 VAC or 195.5-253 VAC |
| Nominal Current | 30.4A |
| Power Factor Range | 0.9 lag- 0.9 lead, Default 0.99 |
| Max. Conversion Efficiency (DC/AC) | 96% |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 8000W |
| Maximum PV Array Open Circuit Voltage | 500Vdc |
| Start-up Voltage / Initial Feeding Voltage | 120Vdc / 150Vdc |
| PV Array MPPT Voltage Range | 120~430Vdc |
| Maximum PV Input Current | 18A×2 |
| Maximum PV Input Current for ISC | 30A |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| Maximum Charging Current | 120A |
| PHYSICAL | |
| Dimension (D × W × H) | 139 × 295 × 492mm |
| Net Weight | 14kgs |
| Communication Port | RS232/USB/Dry-contact/Wi-Fi |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -10°C ~ 60°C |
Specifications are subject to change without notice.
