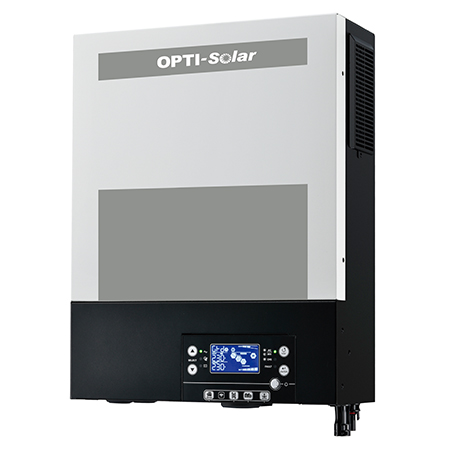

SP Handy Plus Series
SP Handy Plus 4-6K
Detachable LCD screen design with full information.
Easily access the DATA via its Wi-Fi function.
Communication with BMS for better battery management.
Easily access the DATA via its Wi-Fi function.
Communication with BMS for better battery management.
- Dual output design
- High PV input range
- Pure sine wave inverter
- Selectable high power charging current
- Compatible with mains or generator power
- Built-in solar charge controller
- Overload and short circuit protection
- Smart battery charger design for battery performance optimization
- Cold start function
- Wi-Fi function
- Detachable LCD display

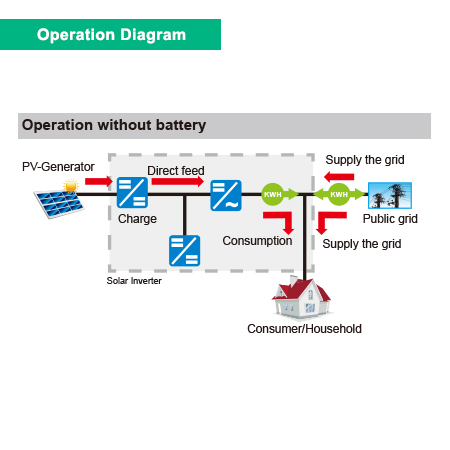

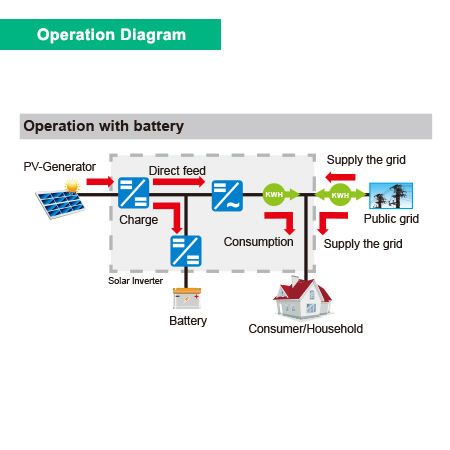

Operation Diagram
| MODEL | SP4000 Handy Plus | SP6000 Handy Plus |
| Rated Power | 4000VA/4000W | 6000VA/6000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
| 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 2 rated power for 5 seconds | |
| Peak Efficiency | 93% | |
| Transfer Time | 10 ms (For Personal Computers) | |
| 20 ms (For Home Appliances) | ||
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 5000W | 6000W |
| Maximum PV Input Current | 27A | |
| Maximum PV Input Short Circuit Current | 30A | |
| Maximum PV Array Open Circuit Voltage | 500Vdc | |
| PV Array MPPT Voltage Range | 60~450Vdc | |
| Maximum Solar Charging Current | 120A | |
| Maximum AC Charging Current | 100A | |
| Maximum Charging Current | 120A | |
| PHYSICAL | ||
| Dimension (D × W × H) | 115 × 300 × 435mm | |
| Net Weight | 9kg | 10kg |
| Communication Port | RS232/USB/Dry-contact/BMS/Wi-Fi | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C ~ 55°C | |
| Storage Temperature | -15°C ~ 60°C | |
Specifications are subject to change without notice.
