SP IP Grid Series

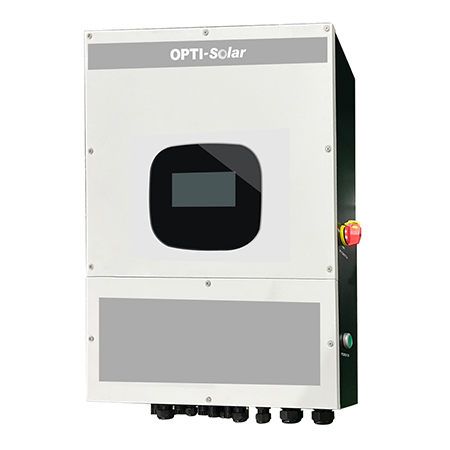

SP IP Grid 6-10K
IP65 waterproof and dustproof design.

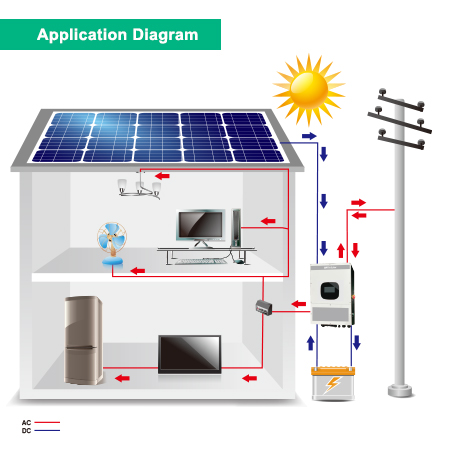

Hybrid inverter with Grid-tie function for outdoor installations.
- IP65 waterproof and dustproof design
- Grid-tie function with backup
- Dual output selected as either programmable output or generator input
- Built-in alternative port for generator and emergent load
- Optional external CT sensor to guarantee 100% self-consumption
- Built-in communication port for BMS
- User-adjustable charging current and voltage
- Parallel Operation of up to 6 units
| MODEL | SP6000 IP Grid | SP10000 IP Grid |
| RATED POWER | 6000 W | 10000 W |
| PV INPUT (DC) | ||
| Maximum DC Power | 7500 W | 12000 W |
| Nominal DC Voltage | 360 VDC | |
| Maximum DC Voltage | 600 VDC | |
| Start-up Voltage / Initial Feeding Voltage | 125 VDC / 160 VDC | |
| MPP Voltage Range | 120 VDC ~ 550 VDC | |
| Maximum Input Current | 2×15 A | 2×18 A |
| Isc PV (absolute maximum) | 21 A | 21 A |
| Max. inverter back feed current to the array | 0 A | 0 A |
| GRID OUTPUT (AC) | ||
| Nominal Output Voltage | 110 VAC (P-N) / 220 VAC (P-P) | |
| Output Voltage Range | 105.5 - 132 VAC per phase | 97 - 132 VAC per phase |
| Output Frequency Range | 47.5 ~ 51.5 Hz or 59.3~ 60.5Hz | |
| Nominal Output Current | 25 A per phase | 41.5 A per phase |
| Inrush Current/Duration | 30 A per phase / 20ms | 60 A per phase / 20ms |
| Maximum Output Fault Current/Duration | 90 A per phase / 1ms | 120 A per phase / 1ms |
| Maximum output Overcurrent Protection | 90A per phase | 120A per phase |
| Power Factor Range | 0.9 lead – 0.9 lag | |
| AC INPUT | ||
| AC Start-up Voltage | 85 VAC per phase (P-N) / 170 VAC per phase (P-P) | |
| Auto Restart Voltage | 90 VAC per phase (P-N) / 180 VAC per phase (P-P) | |
| Acceptable Input Voltage Range | 85 - 140 VAC per phase (P-N) / 170 - 280 VAC per phase (P-P) | |
| Nominal Frequency | 50 Hz / 60 Hz | |
| AC Input Power | 6000VA/6000W | 10000VA/10000W |
| Maximum AC Input Current | 30 A | 40 A |
| Inrush Input Current | 30 A / 1ms | 40 A / 1ms |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage | 110 VAC (P-N) / 220 VAC (P-P) | |
| Output Frequency | 50 Hz / 60 Hz (auto sensing) | |
| Output Waveform | Pure sine wave | |
| Output Power | 6000VA/6000W | 10000VA/10000W |
| EFFICIENCY | ||
| DC to AC | 96% | |
| Battery to AC | 91% | |
| BATTERY & CHARGER | ||
| Nominal DC Voltage | 48 VDC | |
| DC Voltage Range | 40 - 62 VDC | |
| Maximum Battery Discharging Current | 150 A | 150 A |
| Maximum Solar Charging Current | 120 A | 200 A |
| Maximum Charging Current | 120 A | 200 A |
| Maximum PV Input Current | 27A | |
| Maximum PV Input Short Circuit Current | 30A | |
| PHYSICAL | ||
| Dimension (D × W × H) | 215.5 × 515 × 700 mm | |
| Net Weight | 41kg | 45kg |
| INTERACE | ||
| Communication Port | RS-232 / USB / BMS | |
| Intelligent Slot | Optional SNMP, Modbus cards available | |
| ENVIRONMENT | ||
| Protective Class | I | |
| Ingress Protection Rating | IP65 | |
| Humidity | 0 ~ 90% RH (No condensing) | |
| Operating Temperature | -25 to 60°C | |
| Altitude | 0 ~ 2000 m* | |
Specifications are subject to change without notice.
* Power derating 1% every 100m when altitude is higher than 1000m.
* Power derating 1% every 100m when altitude is higher than 1000m.
